Interactive JavaScript Graph Visualizations: WebGL & 3D

Interactive directed graph visualization in JavaScript balances graphical performance against layout complexity. High-density, volumetric 3D network rendering exceeding 10,000 nodes relies on WebGL and Three.js where GPU parallelization prevents browser thread freezing. Conversely, 2D semantic layouts, compound clustering, and rich DOM-driven node interactions below 2,000 nodes are best served by specialized graph engines like Cytoscape.js or Vis.js.

On this website, interactive network graphs allow visitors to explore the multidimensional relationships between content topics, engineering blog posts, and academic publications. To turn these architectural principles into a fast, responsive user experience, we recently overhauled this visualization system from the ground up.

Instead of a monolithic script, the system now runs on a modular, multi-engine architecture supporting Cytoscape.js, D3.js, Sigma.js, Vis.js Network, and an immersive 3D Force Graph powered by Three.js and WebGL.

Here is a technical walkthrough of how we restructured the system, implemented layout algorithms with smooth animations, added live theme-awareness, and synchronized user settings via the URL.

1. How Does the Modular Multi-Engine Visualization Architecture Work?

The modular multi-engine visualization architecture decouples graph layout logic from the Astro presentation layer by encapsulating each rendering framework into standalone ES modules conforming to a unified lifecycle interface. Dynamic runtime imports load heavyweight WebGL or canvas dependencies strictly on demand, cutting initial bundle weights while preserving cross-engine theme and state synchronization.


When architecting web-based graph systems, evaluating trade-offs such as Sigma.js vs. Cytoscape.js or integrating a Three.js network graph dictates whether rendering should happen via 2D Canvas, SVG, or WebGL:

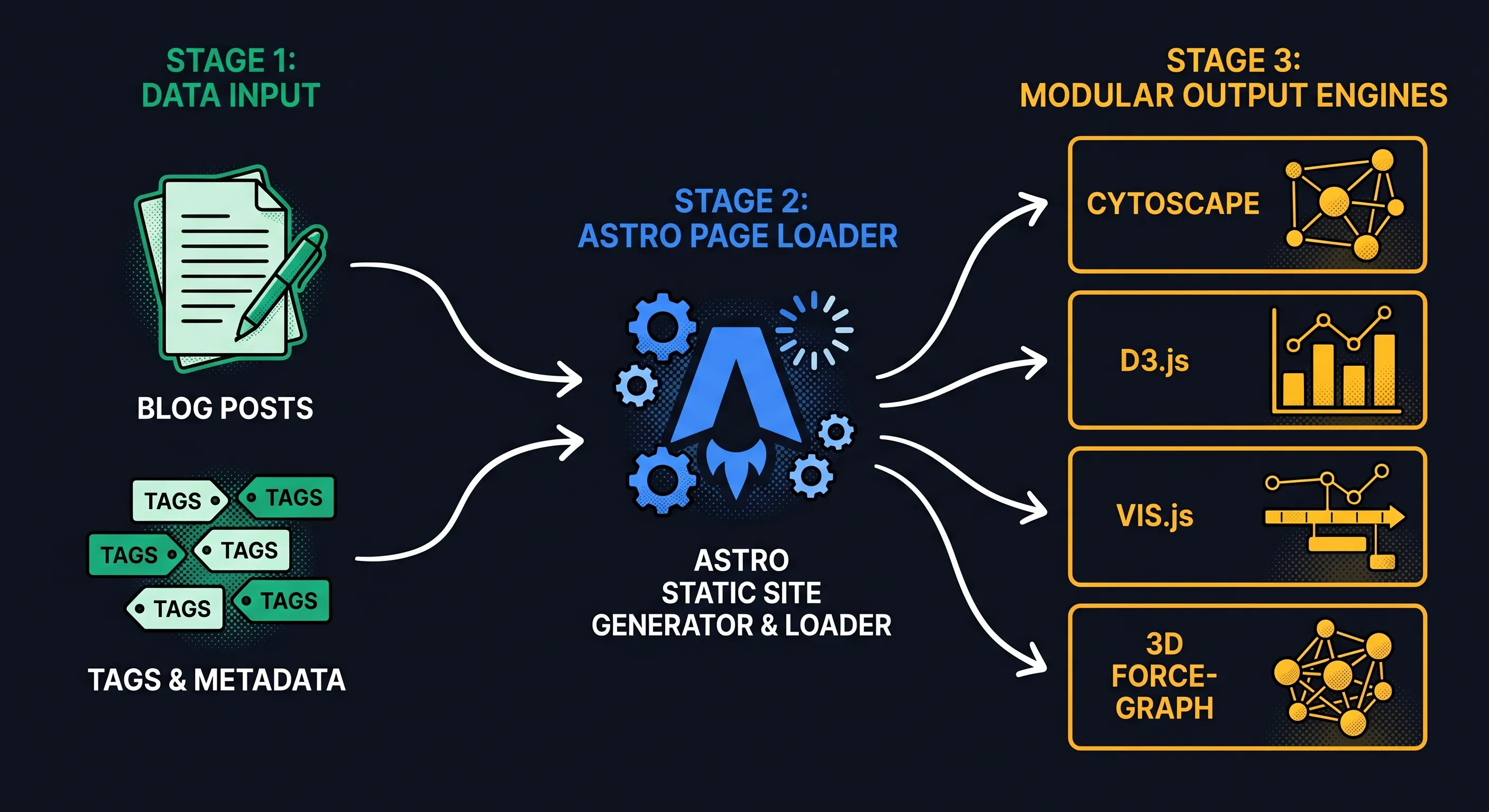

Originally, the logic for loading libraries and initializing the graphs was crammed directly inside our Astro page. This made it difficult to maintain and expand. To resolve this, we extracted the code into a modular structure where each graphing engine is defined as a standalone JavaScript ES module.

Every engine conforms to a unified interface:

export default {
  layouts: [
    { id: 'force', label: 'Force Directed (Organic)' },
    { id: 'radial', label: 'Concentric Rings' },
    { id: 'columns', label: 'Structured Columns' }
  ],
  async init(container, payload, layout, isLight) { ... },
  updateLayout(layout, isLight) { ... },
  destroy() { ... }
}

The Astro template [slug].astro dynamically imports the selected engine at runtime using code splitting:

const engineModule = await import(`../../content/visualizations/${type}/engine.js`);
const engine = engineModule.default;
activeInstance = await engine.init(container, payload, currentLayout, isLight);

This drastically reduces the initial page bundle size, loading dependencies like Three.js or Vis.js only when the user selects that specific engine.

2. Which WebGL and Canvas Engines Power Interactive Graph Visualizations?

Alongside our existing Cytoscape, D3, and Sigma engines, we introduced two new visualization engines:

Algorithmic Mechanics: Barnes-Hut and Worker Thread Offloading

In graph physics simulation, naive n-body repulsive calculations scale quadratically at $O(N^2)$, exhausting the browser’s main-thread budget at merely a few hundred nodes.

• Barnes-Hut Spatial Approximation: Engines like Vis.js and Sigma implement the Barnes-Hut quadtree algorithm ($O(N \log N)$). By clustering distant nodes into center-of-mass pseudo-nodes, force calculations are governed by the opening angle $\theta = s / d$ (where $s$ is the cell width and $d$ the distance from the node to the cluster’s center of mass). Setting $\theta \approx 0.5$ strikes an optimal balance between visual cluster fidelity and real-time execution.
• Web Worker Threading & Serialization: Offloading force iterations to a background Web Worker isolates numerical math from the DOM. However, transferring graph states across the worker boundary via standard structured cloning can introduce garbage-collection pauses. High-capacity engines address this by packing node coordinates into flat Float32Array buffers and transferring them as zero-copy transferable objects (postMessage(buffer, [buffer])).

3D Force Graph (WebGL & Three.js)

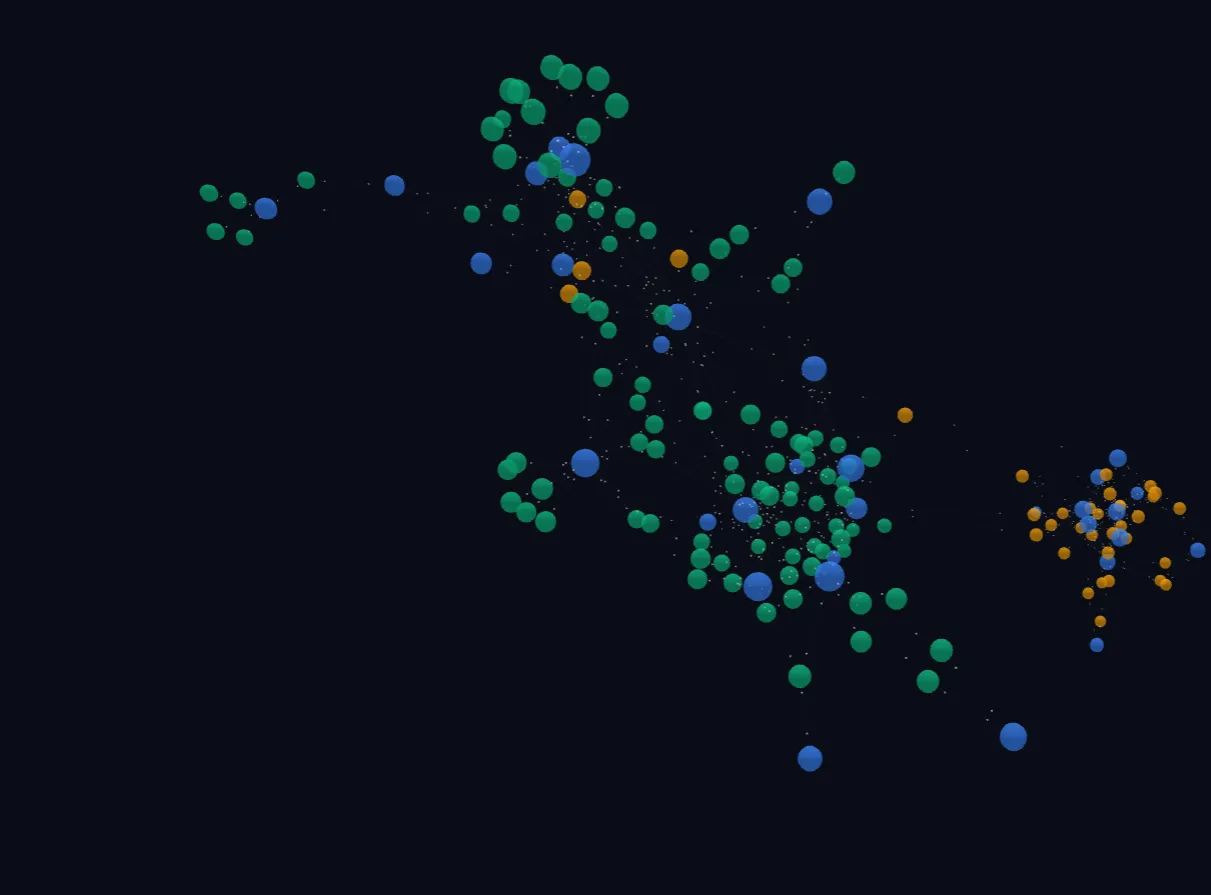

The 3D Force Graph engine (3d-force/engine.js) renders the network as a floating three-dimensional sphere.


Key capabilities of the 3D Force Graph implementation include:

• Volumetric Rendering: Users can rotate, zoom, and pan around the network using an orbit controller.
• Dynamic Particles: To show connections actively, we enabled directional particles traveling along links.
• Three.js Context: Built on WebGL, it runs fluidly at 60 FPS even with complex force calculations.

Vis.js Network (HTML5 Canvas)

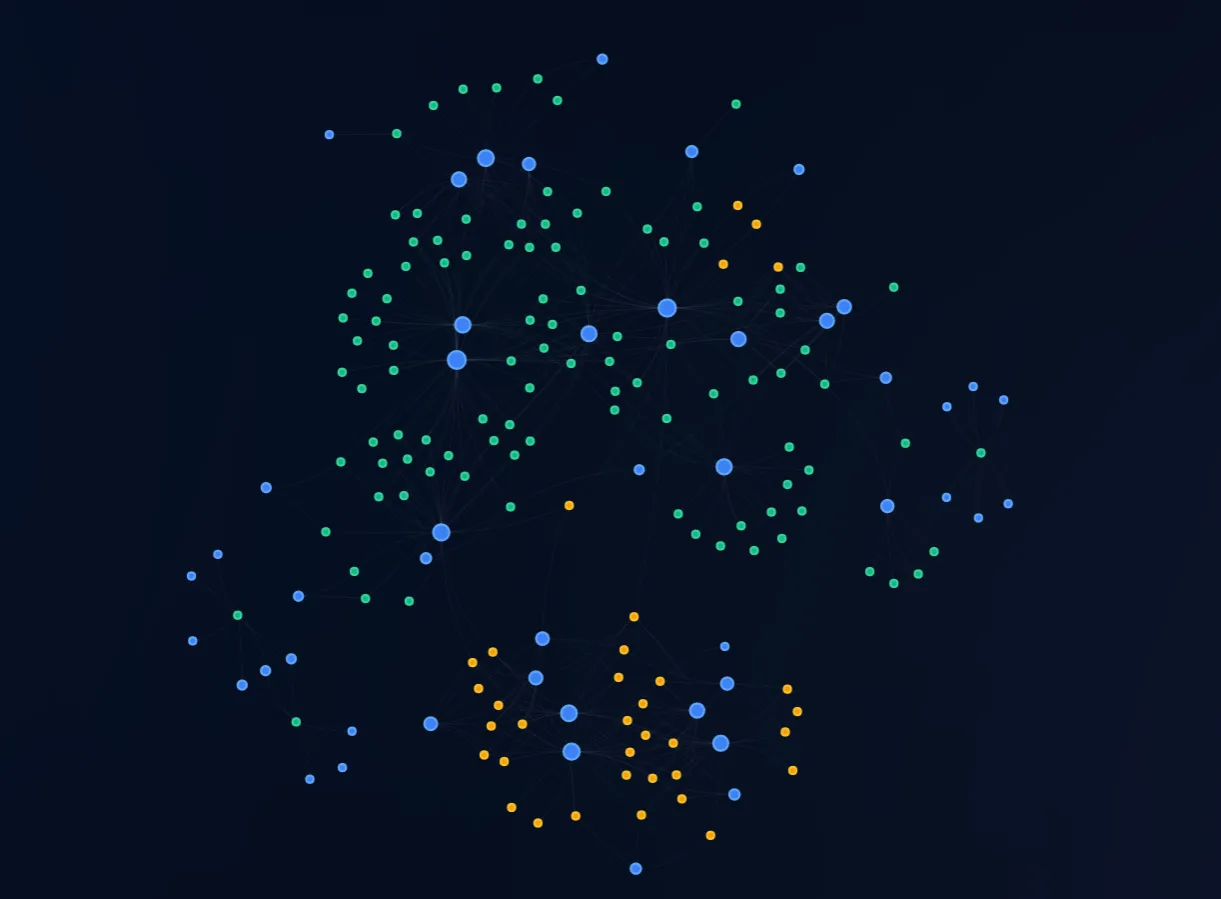

The Vis.js engine (vis-network/engine.js) provides an incredibly smooth 2D canvas visualization.


Core interactive characteristics of the Vis.js Canvas renderer include:

• Elastic Physics: Nodes react like spring-mass dampers, settling into place with organic bouncing effects.
• Custom Shapes & Labels: Each node type (Tag, Post, Publication) is color-coded and sized proportionally based on its degree of connections, with custom font configurations matching our typography.
• Interaction Events: Handles hover states and double-clicks cleanly to navigate users directly to posts or publications.

3. How Can Coordinate Transitions and Organic Layouts Be Smoothly Animated?

A major feature of this update is the ability to toggle between three distinct layouts:

1. Force Directed: Nodes self-organize organically based on charge repulsion and edge attraction forces.
2. Concentric Rings (Radial): Topic tags cluster in a dense inner ring, while posts and publications radiate out in an outer concentric ring.
3. Structured Columns (Category): Organizes nodes into vertical columns—posts on the left, tags in the center, and publications on the right.

Easing Coordinate Interpolation

Rather than snapping nodes instantly to new layouts (which is disorienting), we disable the physics solvers during transition and manually interpolate coordinates using a cubic ease-in-out function:

$f(t) = \begin{cases} 4t^3 & \text{if } t < 0.5 \\ 1 - \frac{(-2t + 2)^3}{2} & \text{otherwise} \end{cases}$

This is implemented in Javascript using requestAnimationFrame:

animateTo(targets, duration = 600) {
  const startTime = performance.now();
  const startPositions = this.network.getPositions(); // Fetch current positions

  const step = (time) => {
    const elapsed = time - startTime;
    const progress = Math.min(elapsed / duration, 1);

    // Easing calculation
    const ease = progress < 0.5
      ? 4 * progress * progress * progress
      : 1 - Math.pow(-2 * progress + 2, 3) / 2;

    const updates = [];
    this.nodes.forEach(n => {
      const start = startPositions[n.id] || { x: 0, y: 0 };
      const target = targets[n.id];
      if (target) {
        updates.push({
          id: n.id,
          x: start.x + (target.x - start.x) * ease,
          y: start.y + (target.y - start.y) * ease
        });
      }
    });

    this.visNodes.update(updates);

    if (progress < 1) {
      this.animationFrameId = requestAnimationFrame(step);
    }
  };

  this.animationFrameId = requestAnimationFrame(step);
}

4. Theme-Aware Style Syncing

The website supports light and dark modes. Network graphs rendered on a canvas or WebGL context don’t automatically update when the HTML document’s class changes.

To bridge this gap, we set up a custom listener for theme changes:

window.addEventListener('theme-changed', () => {
  const isLight = document.documentElement.classList.contains('light');
  if (activeInstance) {
    const params = new URLSearchParams(window.location.search);
    const currentLayout = params.get('layout') || activeInstance.layouts[0].id;
    activeInstance.updateLayout(currentLayout, isLight);
  }
});

Within each engine, updateLayout updates the node and label colors, background properties, and edge styles on the fly:

• Cytoscape: Updates node label colors using the stylesheet selector APIs (cy.style().selector('node').style(...)).
• D3: Updates svg attributes (nodeElements.selectAll("text").style("fill", ...)).
• 3D Force: Readjusts the renderer background color and edge material properties dynamically.
• Vis.js: Modifies datasets in batches and calls .update() to tell the canvas to repaint.

This guarantees that toggling between light and dark modes feels completely seamless, with no ugly canvas flashes or context losses.

5. URL State Synchronization

When users discover a layout they like (e.g., concentric rings in Vis.js), navigating away and returning shouldn’t reset their choice. We resolved this by persisting the layout ID directly into the browser’s URL query string.

When a layout is selected from the dropdown:

selector.addEventListener('change', (e) => {
  const newLayout = e.target.value;
  if (activeInstance) {
    const url = new URL(window.location.href);
    url.searchParams.set('layout', newLayout);
    window.history.pushState({}, '', url.toString()); // Update URL without reloading

    const isLight = document.documentElement.classList.contains('light');
    activeInstance.updateLayout(newLayout, isLight);
  }
});

On page load, the Astro script parses the URL parameters to fetch the state, initializing the canvas directly with the user’s preferred layout.

Conclusion & Live Interactive Demos

With this modular refactoring, the graph visualization page is more robust, lighter on initial loading speeds, and visually synchronized with the rest of the website. Whether you prefer the organic physics of Vis.js, the raw data transparency of D3, or the futuristic fly-throughs of the 3D Force Graph, the system delivers a premium, smooth interactive experience in light and dark mode alike.
